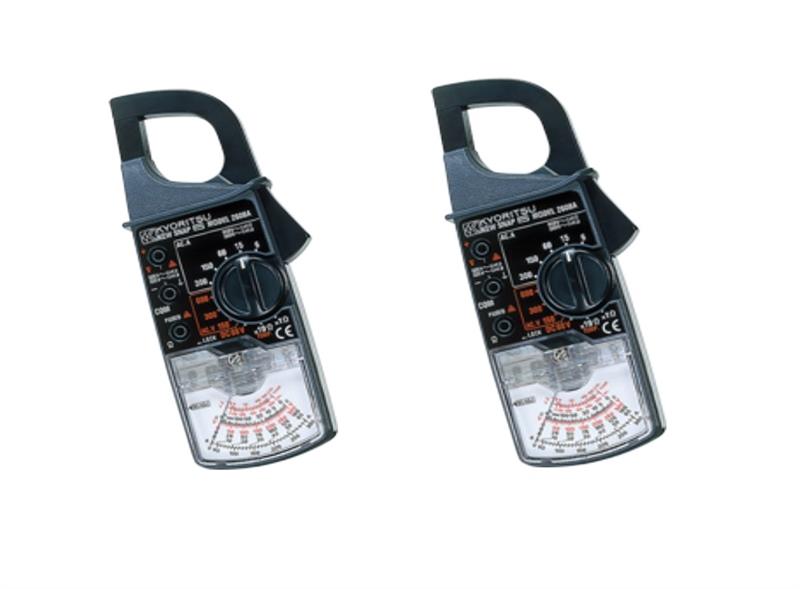

指针式钳型电流表（日本）CP17-2805停产替代款 型号:CP17-2608A库号：M204386
直流电压量程适用于检查紧急电池动作的电源供应器.
? 夹钳设计成水滴状，方便使用.
AC A 6/15/60/150/300A 大刻度值的±3%
AC V 150/300/600V 大刻度值的±3%
DC V 60V 大刻度值的±3%
Ω 1/10kΩ (中间值 25/250Ω )
刻度的±2%
Temperature Note: The MODEL2608A includes a temperature measurement scale,
but it is not available for new customers due to the discontinue of the Temperature Probe 7060.
Conductor size ?33mm max.
Frequency response 50Hz/60Hz
Applicable standards IEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61010-2-031
IEC 61010-2-032
Power source R6 (AA) (1.5V) × 1
Dimensions 193(L) × 78(W) × 39(D)mm
Weight 275g approx.
Included Accessories 7066A (Test leads)
8923 (Fuse [0./600V]) × 2
9097 (Carrying case)
R6 (AA) × 1
Instruction Manual
直流电压量程适用于检查紧急电池动作的电源供应器.
? 夹钳设计成水滴状，方便使用.
AC A 6/15/60/150/300A 大刻度值的±3%
AC V 150/300/600V 大刻度值的±3%
DC V 60V 大刻度值的±3%
Ω 1/10kΩ (中间值 25/250Ω )
刻度的±2%
Temperature Note: The MODEL2608A includes a temperature measurement scale,
but it is not available for new customers due to the discontinue of the Temperature Probe 7060.
Conductor size ?33mm max.
Frequency response 50Hz/60Hz
Applicable standards IEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61010-2-031
IEC 61010-2-032
Power source R6 (AA) (1.5V) × 1
Dimensions 193(L) × 78(W) × 39(D)mm
Weight 275g approx.
Included Accessories 7066A (Test leads)
8923 (Fuse [0./600V]) × 2
