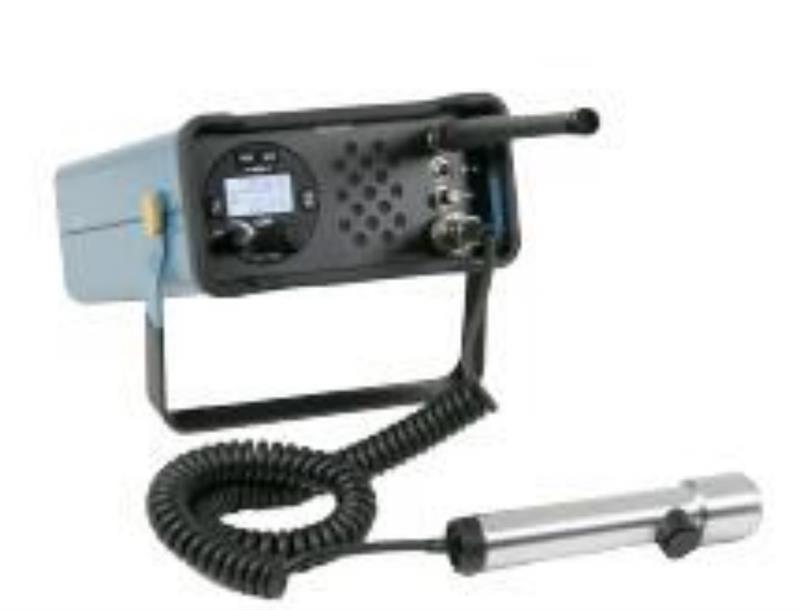

贝克无线电收发机 10W型号:ZXHD/GK616库号：M371880
Supply voltage external10...32 VDC via charging device for 115/230 VACDC power source (car battery)Frequency range 118.000...136.9916 MHzChannel spacing 8.33 / 25 kHzNumber of channels 760 (25 kHz mode)2280 (8.33 kHz mode)
Frequency stability < 5 ppm
Storage temperature -55...+85 °C
Operating
temperature
-20...+55 °C
Maximum altitude 35000 ft
TransmitterOutput power≥ 10 W @ into50 Ω at 24 VDC
Type of modulation A3E (amplitude modulation)
Modulation ≥ 70%
Modulation input Dyn. Microphone
ReceiverSensitivity ≤ -101 dBm for (S+N/N) ratio of 6 dB
Squelch Trigger level is adjustableAudio output ≥ 4 W into 4 Ω≥ 100 mW into 600 ΩDimensions HxWxD 85 x 165 x 277 mm
Weight≤ 6.5 kg
Standardsbased on AR6201:ETSO-2C37e, ED-23BEquip. Class D, 5ETSO-2C38e, ED-23BEquip. Class E, 7EUROCAE/RTCAED-14E/DO-160EEUROCAE/RTCAED-12B/DO-178B
Supply voltage external10...32 VDC via charging device for 115/230 VACDC power source (car battery)Frequency range 118.000...136.9916 MHzChannel spacing 8.33 / 25 kHzNumber of channels 760 (25 kHz mode)2280 (8.33 kHz mode)
Frequency stability < 5 ppm
Storage temperature -55...+85 °C
Operating
temperature
-20...+55 °C
Maximum altitude 35000 ft
TransmitterOutput power≥ 10 W @ into50 Ω at 24 VDC
Type of modulation A3E (amplitude modulation)
Modulation ≥ 70%
Modulation input Dyn. Microphone
ReceiverSensitivity ≤ -101 dBm for (S+N/N) ratio of 6 dB
Squelch Trigger level is adjustableAudio output ≥ 4 W into 4 Ω≥ 100 mW into 600 ΩDimensions HxWxD 85 x 165 x 277 mm
Weight≤ 6.5 kg
收发机收发机收发机收发机
Standardsbased on AR6201:ETSO-2C37e, ED-23BEquip. Class D, 5ETSO-2C38e, ED-23BEquip. Class E, 7EUROCAE/RTCAED-14E/DO-160EEUROCAE/RTCAED-12B/DO-178B
